2MP Lenses Series

1/2"Format Manual lris Fixed Lenses
ltem No	Resolution	Mount	Focal Length	F/NO	lris Type	Download
FiFO-0420MM	100lp/mm	C	4mm	F2.0~F16	Manual
FiFO-0614MM	100lp/mm	C	6mm	F1.4~F16	Manual
FiFO-0814MM	100lp/mm	C	8mm	F1.4~F16	Manual

2/3"Format Manual lris Fixed Lenses
ltem No	Resolution	Mount	Focal Length	F/NO	lris Type	Download
FiFO-1214MM	100lp/mm	C	12mm	F1.4~F16	Manual
FiFO-1614MM	100lp/mm	C	16mm	F1.4~F16	Manual
FiFO-2514MM	100lp/mm	C	25mm	F1.4~F32	Manual
FiFO-3514MM	100lp/mm	C	35mm	F1.4~F32	Manual
FiFO-5020MM	100lp/mm	C	50mm	F2.0~F16	Manual
FiFO-7524MM	100lp/mm	C	75mm	F2.4~F22	Manual
FiFO-7525MM	100lp/mm	C	75mm	2.5	Manual

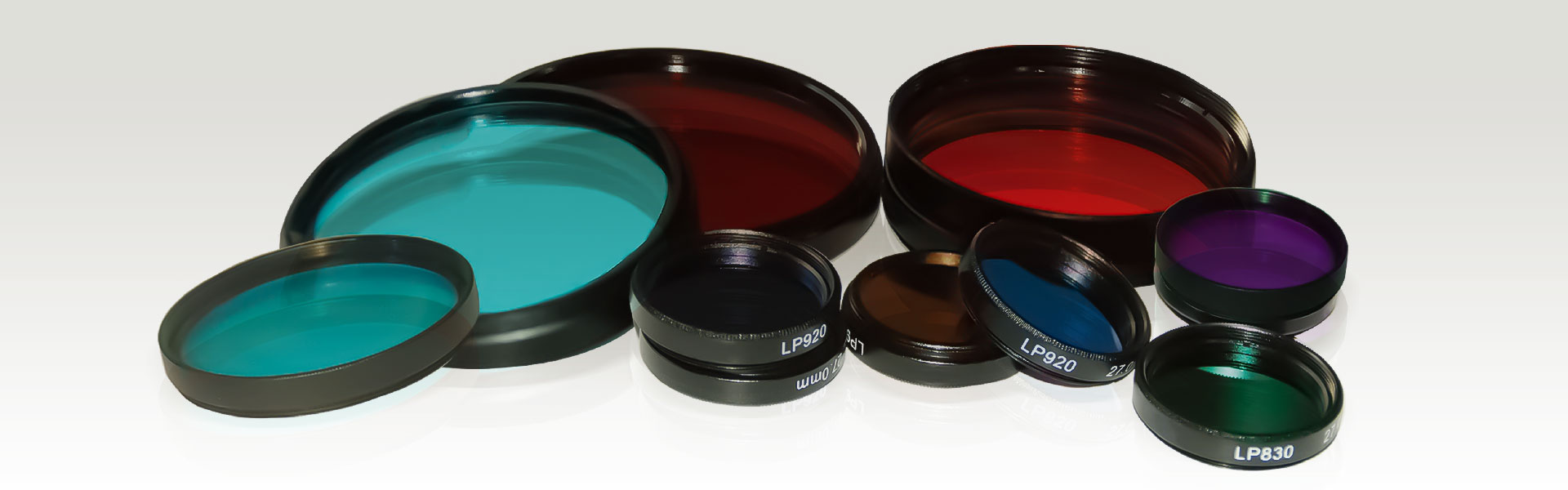

As an important accessory for machine vision, filters can largely enhance the work efficiency of visionsystems. FlFO offers the full spectral range of filters in different types, such as long pass filters, bandpass filters etc. All filters are mounted in standard sizes, matching FlFO mega-pixel lenses and othelbrands of lenses. We also can do custom coating designs upon request.

Bandpass Filter Series

Color Bandpass Filter
Item No.	Description
FIFO-BP465	Blue Bandpass UV Block 465m
FIFO-BP470	Blue Bandpass UV Block 470m
FIFO-BP500	Green Blue Bandpass 500nm
FIFO-BP525	Light Green Bandpass 525nm
FIFO-BP530	Green Bandpass 530nm
FIFO-BP535	Green Bandpass 535nm
FIFO-BP590	Orange Bardpass 590nm
FIFO-BP635	Light Red Bandpass 635m
FIFO-BP660	Dark Red Bandpass 660nm
Infrared Pass/Visible Block Bandpass Filter
Item No.	Description
FIFO-BP695	IR Bandpass 695nm
FIFO-BP735	IR Bandpass 735nm
FIFO-BP800	IR Bandpass 800nm
FIFO-BP850	IR Bandpass 850nm
FIFO-BP890	IR Bandpass 880nm

Longpass Filter Series

Color Bandpass Filter
Item No.	Description
FIFO-LP470	Light Yellow Longpass 470nm
FIFO-LP500	Yellow Longpass 500nm
FIFO-LP515	Yellow Orange Longpass 515nm
FIFO-LP530	Orange Longpass 530nm
FIFO-LP550	Orange Longpass 550nm
FIFO-LP580	Red Orange Longpass 580nm
FIFO-LP590	Red Longpass 590nm
FIFO-LP610	Red Longpass 610nm
FIFO-LP630	Red Longpass 630nm
FIFO-LP640	Dark Red Longpass 640nm
InfraredPass/ Visible Block Longpass Filter
Item No.	Description
FIFO-LP695	IR Longpass 695nm
FIFO-LP715	IR Longpass 715nm
FIFO-LP780	IR Longpass 780nm
FIFO-LP830	IR Longpass 830nm
FIFO-LP850	IR Longpass 850nm
FIFO-LP920	IR Longpass 920nm
FIFO-LP1000	IR Longpass 1000nm

Day & Night Lenses

3 Mega-pixel 1/1.2"Format Manual lris Lenses Series
ltem No	Resolution	Mount	Focal Length	F/NO	lris Type	Download
FIFO-DNO815SL3M	100lp/mm(3MP)	C	8.3mm	F1.5~16	Manual lris
FIFO-DN2815SL3M	100lp/mm(3MP)	C	28mm	F1.5~16	Manual lris

5 Mega-pixel 1" Format Lenses Series
ltem No	Resolution	Mount	Focal Length	F/NO	lris Type	Download
FIFO-DN3520FM	100lp/mm(5MP)	C	35mm	F2.0~Close	DC-lris
FIFO-DN5028MF	100lp/mm(5MP)	C	50mm	F2.8~Close	DC-lris
FIFO-DN2518MML	100lp/mm(5MP)	C	25mm	F1.4~F22	Manual lris
FIFO-DN3520MML	100lp/mm(5MP)	C	35mm	F2.0~F22	Manual lris
FIFO-DN5028MML	100lp/mm(5MP)	C	50mm	F2.8~F22	Manual lris
FIFO-DN3512MML	100lp/mm(5MP)	C	35mm	F1.2	Manual lris
FIFO-DN2516MX10M	100lp/mm(10MP)	C	25mm	F1.6	Manual lris
FIFO-DN2512MML	100lp/mm(10MP)	C	25mm	F1.2	Manual lris

Megapixel Board Lens	10 Megapixel Board Lens	Low Distortion Lens	Pinhole Lens
Fisheye Lens	TOF Camera Lens	Board Lens

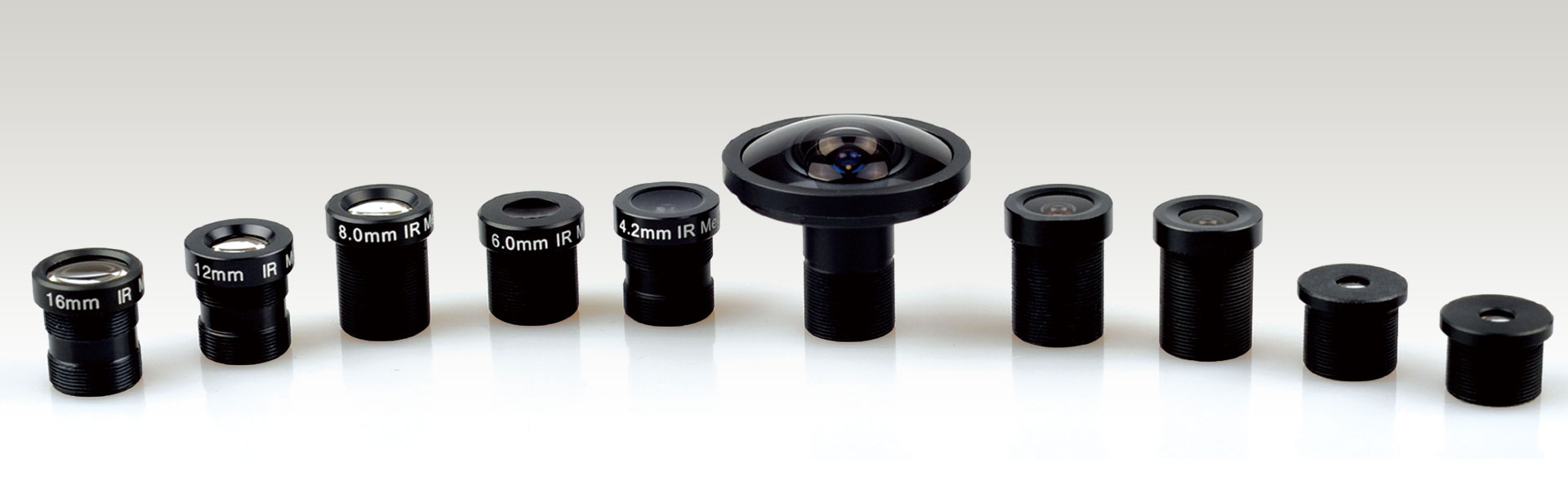

Megapixel Board Lens
Item No	Resolution	Format	Mount	Focal length	F/No.	Download
FIFO-00820B2M	2MP	1/3.8"	M12x0.5	0.85mm	2
FIFO-02120B2M	2MP	1/4"	M12x0.5	2.1mm	2
FIFO-02120B5M	5MP	1/2.9"	M12x0.5	2.1mm	2
FIFO-02324B2M	2MP	1/4"	M12x0.5	2.25mm	2.4
FIFO-02320B5M	5MP	1/2.9"	M12x0.5	2.3mm	2
FIFO-02520B5M	5MP	1/2.9"	M12x0.5	2.3mm	1.9
FIFO-02424B5M	5MP	1/2.5"	M12x0.5	2.35mm	2.4
FIFO-02325B5M	5MP	1/3"	M12x0.5	2.3mm	2.5
FIFO-12524B5M	5MP	1/2.7"	M12x0.5	2.45mm	2.4
FIFO-02524B5M	5MP	1/2.5"	M12x0.5	2.5mm	2.4
FIFO-12520B5M	5MP	1/2.9"	M12x0.5	2.5mm	2.3
FIFO-22524B5M	5MP	1/2.9"	M12x0.5	2.5mm	2.4
FIFO-02521B2M	2MP	1/4"	M12x0.5	2.5mm	2.1
FIFO-02620B2M	2MP	1/4"	M12x0.5	2.6mm	2
FIFO-02725B5M	5MP	1/3"	M12x0.5	2.65mm	2.6
FIFO-22720B5M	5MP	1/2.7"	M12x0.5	2.7mm	2
FIFO-32620B5M	5MP	1/2.7"	M12x0.5	2.8mm	2
FIFO-12818B5M	5MP	1/2.7"	M12x0.5	2.8mm	1.8
FIFO-12918B5M	5MP	1/2.7"	M12x0.5	2.9mm	1.8
FIFO-02918B5M	5MP	1/2.5"	M12x0.5	2.9mm	1.8
FIFO-02920B5M	5MP	1/2.5"	M12x0.5	2.9mm	2
FIFO-02921B5M	5MP	1/2.7"	M12x0.5	2.9mm	2.1
FIFO-03020B3M	3MP	1/2.7"	M12x0.5	3mm	2
FIFO-03024B3M	2MP	1/3"	M12x0.5	3mm	2.4
FIFO-03028B8M	8MP	1/2.3"	M12x0.5	3mm	2.8
FIFO-03022B3M	3MP	1/2.7"	M12x0.5	3mm	2
FIFO-13125B5M	5MP	1/2.7"	M12x0.5	3.08mm	2.5
FIFO-13020B5M	5MP	1/2.7"	M12x0.5	3mm	2
FIFO-03220B2M	2MP	1/2.7"	M12x0.5	3.2mm	2
FIFO-03321B2M	2MP	1/3"	M12x0.5	3.3mm	2.1
FIFO-13425B5M	5MP	1/2.5"	M12x0.5	3.4mm	2.5
FIFO-03618B5M	5MP	1/2.5"	M12x0.5	3.6mm	1.8
FIFO-03617B3M	3MP	1/2.7"	M12x0.5	3.6mm	1.7
FIFO-03626B3M	2MP	1/3"	M12x0.5	3.6mm	2.6
FIFO-03620B3M	3MP	1/2.5"	M12x0.5	3.6mm	2
FIFO-03638B5M	5MP	1/4"	M12x0.5	3.6mm	3.8
FIFO-03820B3M	3MP	1/2.5"	M12x0.5	3.8mm	2
FIFO-04018B5M	5MP	1/2.5"	M12x0.5	4mm	1.8
FIFO-04018B3M	3MP	1/1.8"	M12x0.5	4mm	1.8
FIFO-04516B2M	2MP	1/2.3"	M12x0.5	4.5mm	1.6
FIFO-06018B5M	5MP	1/2.5"	M12x0.5	6mm	1.8
FIFO-06025B5M	5MP	1/1.8"	M12x0.5	6mm	2.5
FIFO-06020B2M	2MP	1/1.8"	M12x0.5	6mm	2
FIFO-08018B5M	5MP	1/2.5"	M12x0.5	8mm	1.8
FIFO-12018B5M	5MP	1/2.3"	M12x0.5	12mm	1.8
FIFO-12025B5M	5MP	1/1.8"	M12x0.5	12mm	2.5
FIFO-16018B2M	2MP	1/3"	M12x0.5	16mm	3
FIFO-25020B3M	3MP	1/2"	M12x0.5	25mm	2

Price List for Standard S-mount Lenses
Model No.	Specifications
FIFO-PE2C	2X Extender for C-mount
FIFO-PE2CS	2X Extender for CS-mount
FIFO-PE1.5C	1.5X Extender for C-mount
FIFO-PE2.5C	2.5X Extender for C-mount
FIFO-PE4C	4X Extender for C-mount
FIFO-PETSET-7sets	(40MM + 20MM + 10MM + 5MM + 2MM + 1MM + 0.5MM)
FIFO-PETSET-9sets	(50MM+ 40MM + 30MM + 20MM + 10MM + 5MM + 2MM + 1MM + 0.5MM)
FIFO-PET50	50mm
FIFO-PET40	40mm
FIFO-PET30	30mm
FIFO-PET20	20mm
FIFO-PET10	10mm
FIFO-PET5.0	5mm
FIFO-PET2.0	2mm
FIFO-PET1.0	1mm
FIFO-PET0.5	0.5mm
FIFO-ADSC	S-mount lens to C-mount adapter
FIFO-ADFT42	F-mount lens to T-mount adapter
FIFO-ADVC	V-mount lens to C-mount adapter
FIFO-ADM42C	C-mount lens to M42-mount adapter 3.A01.090031813
Turning angle prism
FIFO-PC305-1	M30.5*0.5
FIFO-PC355-1	M35.5*0.5
FIFO-MC27-1	M27*0.5
V-mount accessories
FIFO-ADV10	V-mount tube 10mm
FIFO-ADV17.4-29.4	V-mount tube 17.4-29.4mm
FIFO-ADV20-27	V-mount tube 20-27mm
FIFO-ADV6.5	V-mount to T/M42-mount adapter
FIFO-ADVF9	V-mount to F-mount adapter
FIFO-ADVC	V-mount to C-mount adapter
FIFO-ADVM58(20-27)	V-mount to M58-mount adapter
FIFO-ADM58M72	M58-mount to M72-mount adapter
FIFO-ADM72D	V-mount to Dalsa adapter(reference Piranha 2 P2-2x-xxx40)
FIFO-ADM58E10	M58 10mm tube
FIFO-ADM58E25	M58 25mm tube
